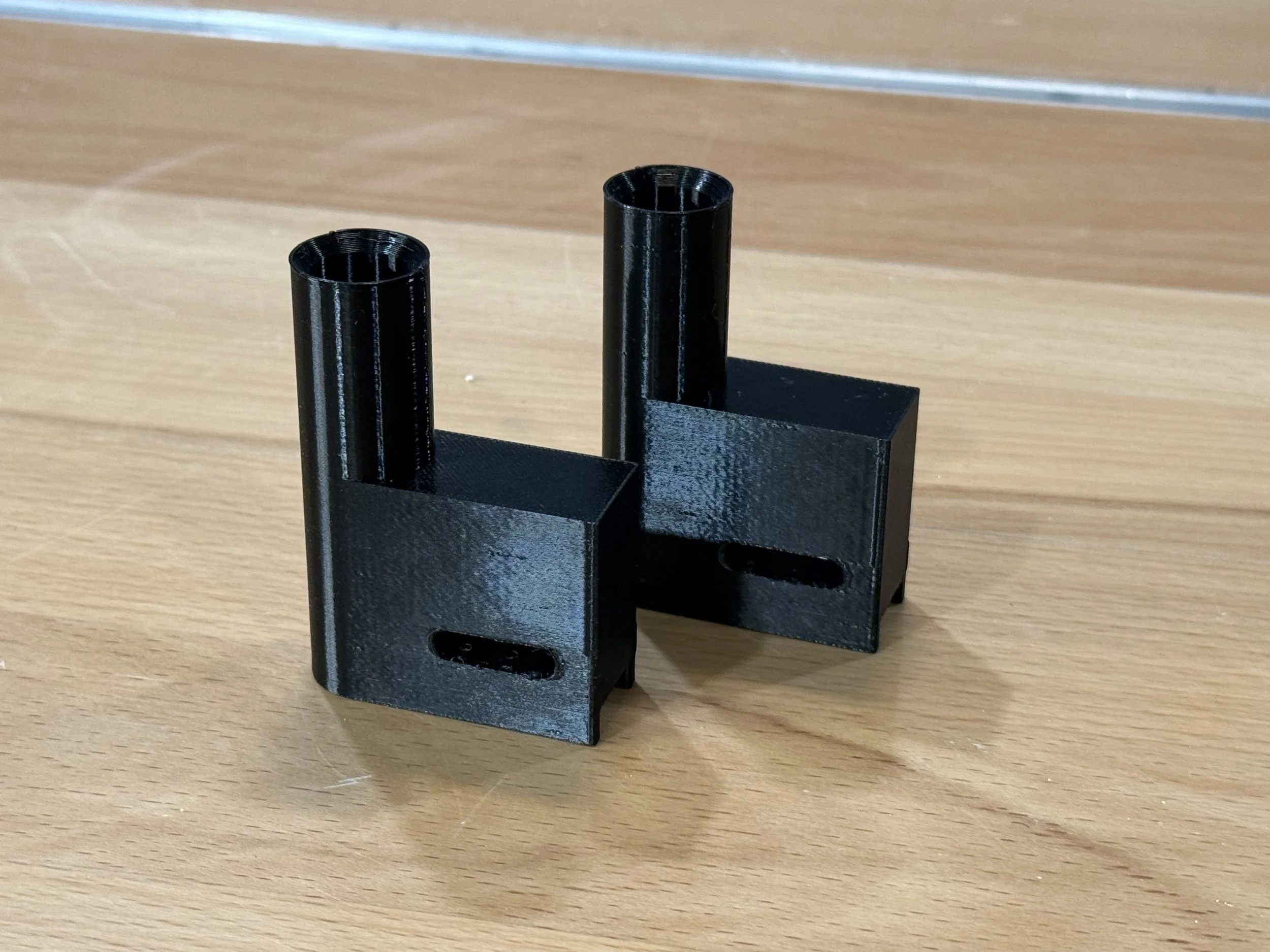

This is a replacement part for the AMP Mate that improves feeding and virtually eliminates any partial feeds or stuck cases associated with the ‘delrin push feed’ mechanism. Historically the AMP Mate allowed four or more cases to be in the vertical feed tube which led to extra weight pushing down on the white delrin feed block. In some cases, this extra weight prevented the cases from being pushed completely into the shell holder leading to jams, double feeds and other issues. This replacement part lowers the case feeder and cuts the numbers of cases in the vertical column by roughly half, allowing the feed block to move under far less weight and friction.
Fits up to any case with a .535 base (most of your magnums) and maintains the same case height as the original part. Based on testing, if the height fit before, it’ll fit with this.
You will have to physically lower your case feeder so make sure your stand is capable of being made shorter

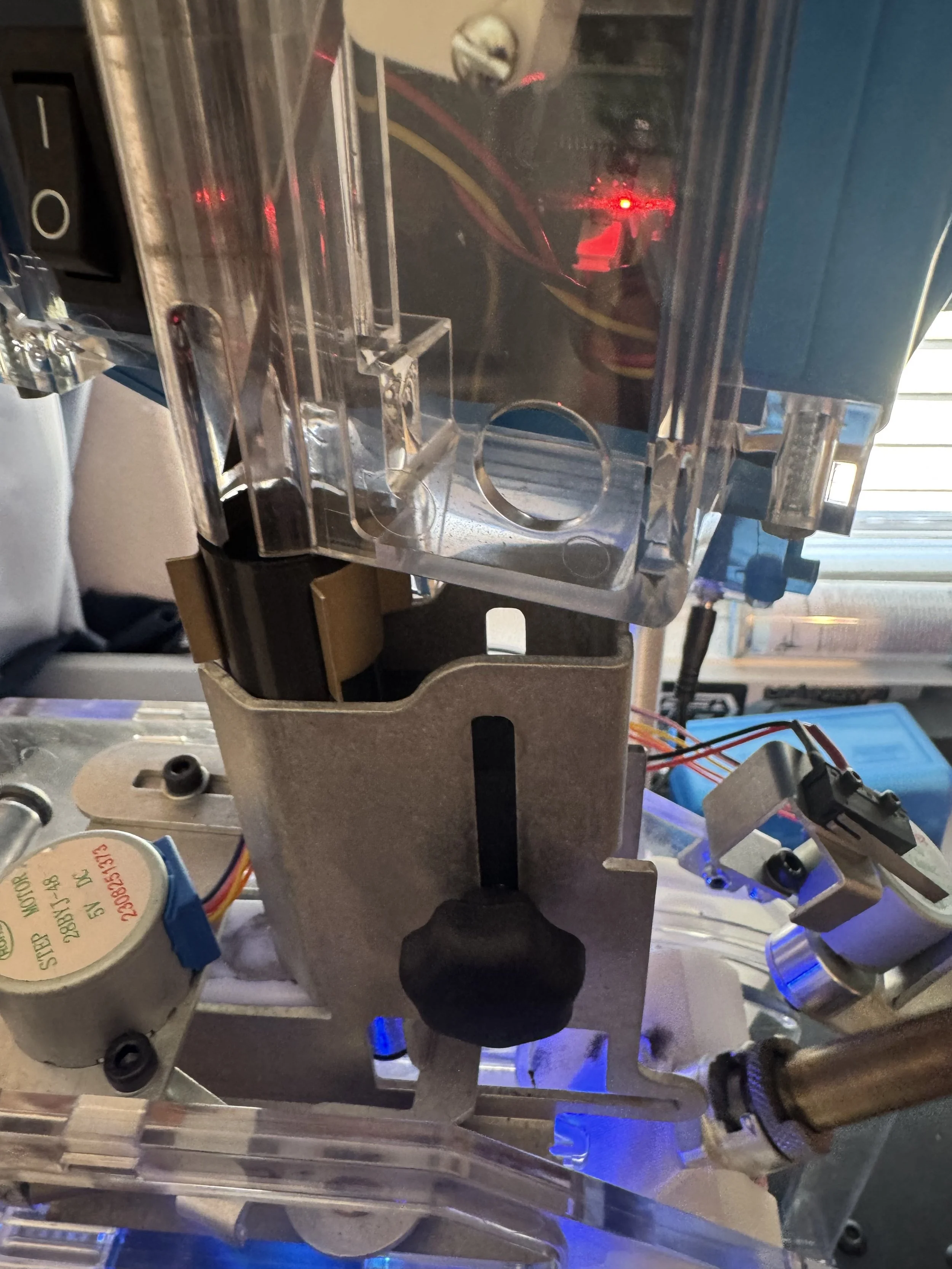

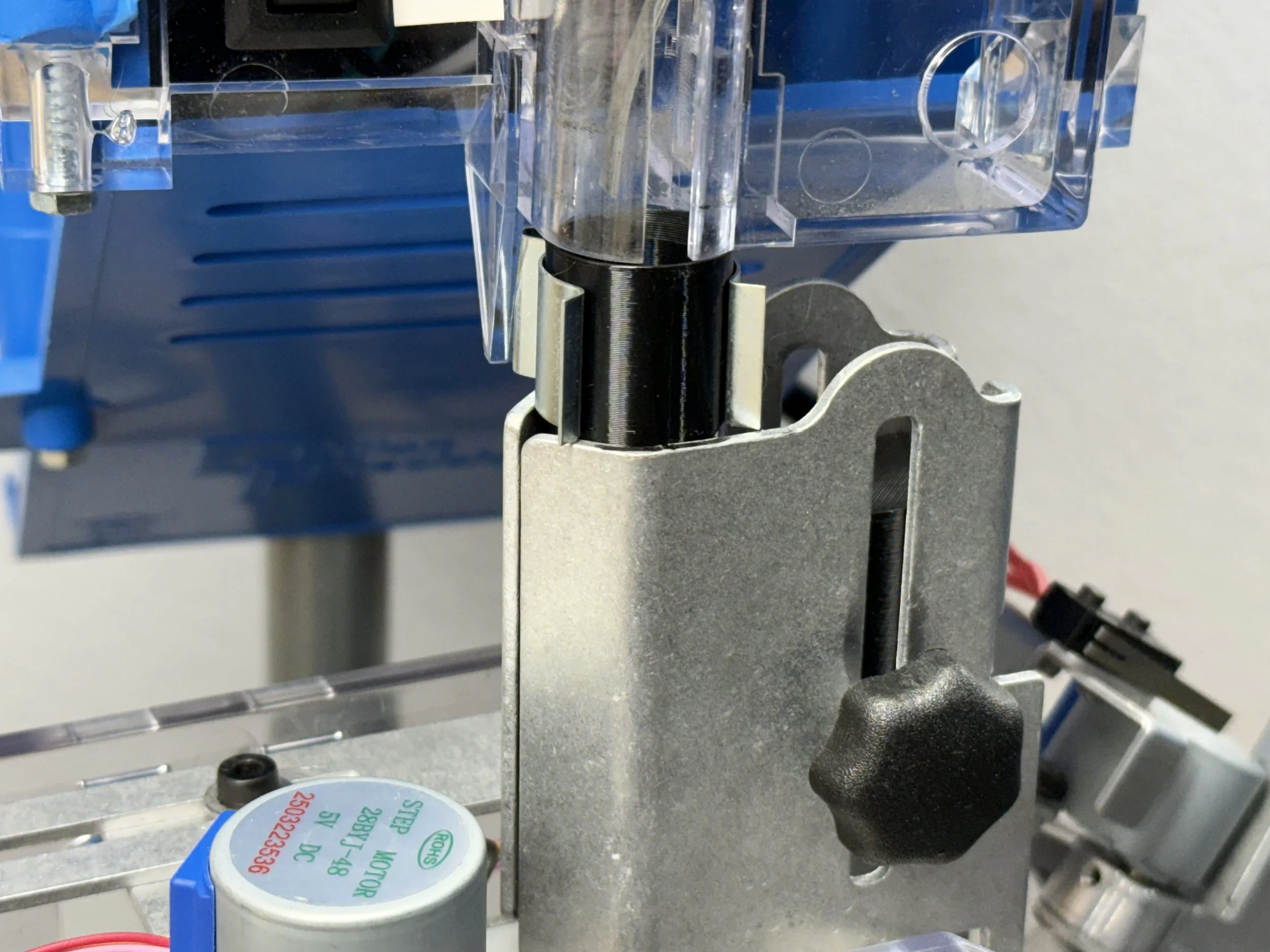

Your case feeder will clip DIRECTLY onto the part as shown in the picture. You do not use any of the existing comparable parts.
